HSF54 - EMR Shielding Paint 5L (Internal/External use)
Regular price
$399.90
$339.90 USD
15% OFF
New & Improved
Shielding paint for shielding high-frequency electromagnetic fields (HF) and low-frequency alternating electrical fields (NF). Our best-selling product, proven ten thousand times over. One-color for everything if you can't decide. Improved again in 2019. Breathable, solvent-free, plasticizer-free, and low in emissions. With outstanding physical and chemical properties combined with high ecology.
Shielding Effectiveness

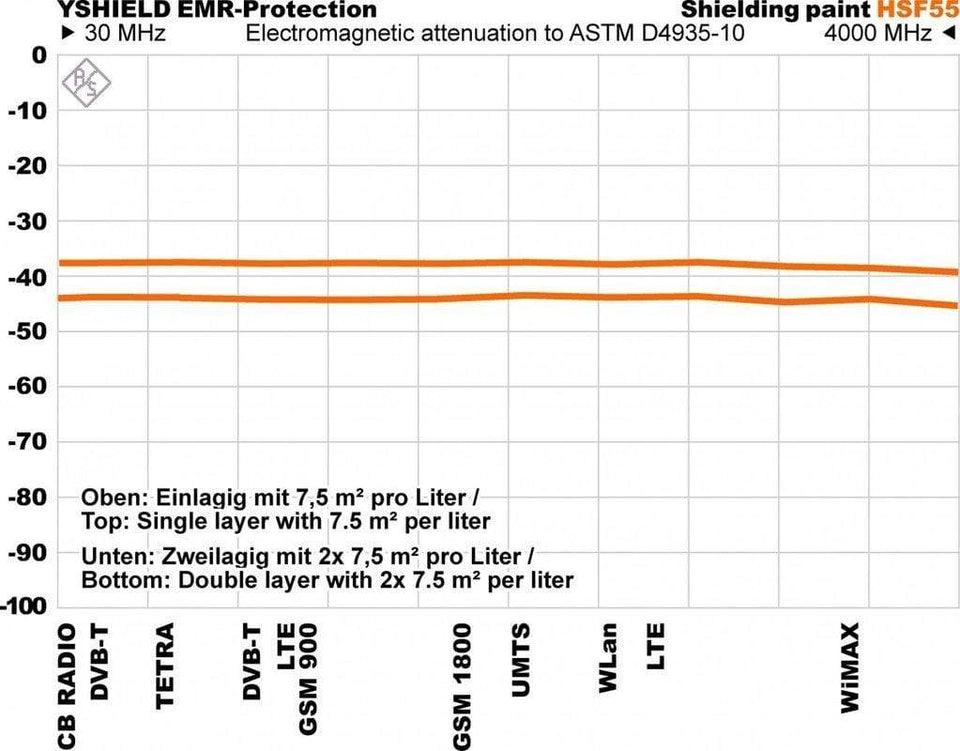

Single-layer 39 dB | Two-layer 49 dB | Three layers of 59 dB
Underground
Excellent adhesion to all common surfaces indoors and outdoors.
Topcoat
It can be reworked, preferably with plastic-based emulsion paints, emulsion silicate paints, facade paints, or silicone resin paints.
Grounding
Must be grounded! We recommend the EB2 grounding strip plus GW grounding plate indoors and the AF3 fiber additive plus GE grounding plate outdoors.
Optional: AF3 fiber additive
For bridging cracks for better earthing, we recommend our fiber additive AF3 with long conductive carbon fibers.
Frost resistance
This product is frost-resistant (5 tested frost/thaw cycles) and can be shipped all year round by air/sea.
Ingredients
Water, natural graphite, pure acrylic dispersion, carbon black, additives, and preservatives (BIT, INN, MIT).
Technical specifications
You will find these in detail in the overview table and the technical datasheet.
As a coating in technical applications
With the fine pigmentation of 50 µm, high film hardness, good substrate wetting, high adhesive tensile values, and Newtonian rheology ... our customers have discovered more and more technical applications over the years: Technical shielding of parts, devices, machines, or systems. Manufacture of absorber materials or pressure sensors. Screen printing on heating foils or plasterboard.
Ready for 5G |
|
TÜV Certification |
No Nanotechnology |
|
| As we keep developing our paints, they now have an almost linear shielding attenuation for a very large frequency range. This frequency range has already been including both 5G frequency spectrums for quite some time: FR1 (600 MHz - 6 GHz) and FR2 (24 GHz - 40 GHz). |
According to various standards up to 40 GHz on-site, we have a professional EMC laboratory operated by long-time experienced staff. You’ll receive independent measuring curves and reports from 40/600 MHz - 40 GHz with all our shielding products. | We have our shielding paints monitored by TÜV-Süd. The whole production process, including quality control, emission behavior, and economical use of preserving agents, is subject to monitoring. Please find the certificate above in the downloads. | Our shielding paints are developed following strict ecological criteria. For example, we use carbon black with the lowest emission possible on the market and untreated natural graphite. We consciously do not use graphene, a nanomaterial where the hazard potential is still completely unknown. |
